The Mosaic 64K RAM Card
Atari Supercharge
LeRoy J. Baxter
|
|
Figure 1.
|
|
I found the prospect of dismantling my Atari 800
to install the Mosaic Select (64K memory board) a
bit frightening since I had never been inside a
computer before. As it turned out, however, I
shouldn't have worried. The computer won't fall
apart just by breathing on it, and it is not really
any more delicate than a stereo or calculator.
My new memory board was actually designed for the
Atari 400, but had been especially modified
(components added) to work in the 800. Even though
the installation manual was written for the 400, it
was clear and complete enough to be of great help in
modifying the 800. (By the time you read this,
Mosaic should have the memory board for the 800
available and you won't have to translate
instructions from the 400 manual.)
Once the computer is disassembled, only two
modifications need to be made:
First, a two-wire cable needs to be soldered to
the main board. It may be best to use a pencil-type
soldering iron with a very small tip. If you have
not soldered a printed circuit board before, this is
the one step you may want someone else to do.
The second modification requires relocating one
of the computer chips from the main board to the new
memory board and installing a preassembled flat
ribbon jumper cable from the socket on the main
board to the memory board.
The rest of the job is just a matter of
reassembling the computer in reverse order from its
disassembly--a task that can be done in one evening
and, with a little practice, could probably be done
in less than a half an hour.
Mosaic uses only the best components and gives an
amazing four year guarantee that is not limited by a
lot of hedges and/or disclaimers.
Just Another Memory Board?

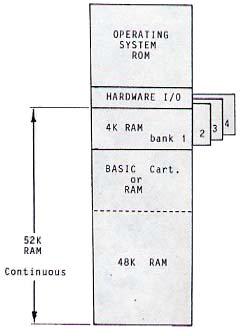

The Mosaic 64K Select is memory expansion with a
difference. The diagram in Figure 1 tells the story.
First, Select expands the RAM of your Atari 400
to the design maximum of 48K and then goes on to
give you 4K more RAM located in the unused ROM area.
Further, this 4K of additional RAM is really 16K --
it is addressable as four software-selectable banks
of 4K each. The Atari 800 can support three of these
boards, giving you 32 banks of 4K each for an
astounding 192K of RAM.
Further, Mosaic has taken great pains to make
their 64K memory board totally compatible with all
existing software. The 4K banks are placed in the
unused area between the Basic cartridge and the
Operating System ROM -- an area presently untouched
by Basic, the Operating System, DOS, or any
software. The method chosen for Bank Switching also
precludes any software incompatibility as Bank
Switching is accomplished by writing (ie. POKE) to
ROM. Since the ROM areas are cast in stone
(silicon), as it were, nothing is actually written
-- it is the act of writing that is important. The
specific address that you try to write to determines
the Bank that will be selected (see Listing 1).
Note that while the Mosaic 64K Select is totally
software compatible, it is not compatible with
certain hardware modifications such as the 80-column
board.
With the Basic cartridge removed,
machine-language programs such as the Atari Word
Processor or Visicalc see 52K of continuous RAM -- a
big boost in available RAM.
With the Basic cartridge installed (or Microsoft
loaded), the normal 40K maximum RAM is available,
along with the four 4K banks that Basic can't see
(at least not without help).
Figure 1.
What good is "invisible" memory? One of the big
problems with using machine-language routines with
Basic has been finding a safe place to put them.
Until now, page 6 (memory starting at 1536) has been
a popular place. Too popular in fact, and a
dangerous place since under certain conditions,
cassette input will use the bottom half of page 6 as
a buffer. Any machine-language routine stored there
will be lost. This can be especially damaging if the
routine is a Vertical Blank routine.
In contrast, machine-language routines or data
stored in the Select Banked Memory areas are 100%
safe. An entirely new program may be loaded without
affecting anything stored there. In addition, a lot
more room is available -- a whopping 4096 bytes
instead of just 256 bytes for page 6.
If you have a Mosaic Select, try this:
10 POKE 65472+0,0:REM SELECT BANK
20 DIM A$(19):A$="this is a LOAD test"
30 FOR X=1 TO 19:POKE 49152+X,ASC(A$(X,X)):NEXT X
then type:
RUN
NEW
LOAD "D:filename" (load any program) or load a
program from cassette
finally (in Direct Mode):
FOR X=1 TO 19:? CHR$(PEEK(49152),A;:NEXT X
Pressing System Reset does not affect the stored
data. Only turning off the computer or overwriting
the data will destroy it.
Player/Missiles and Character Sets
With normal memory management, finding a suitable
place for Player/ Missile data and/or redefined
Character Sets can be a problem. Care must be used
to position PM BASE and/or CH BAS on the appropriate
1K or 2K boundary. If the memory area is reserved by
moving RAMTOP, then care must also be used to
prevent the Display Memory from crossing a 4K
boundary. The pitfalls are many and often large
blocks of memory end up unused.
Other Applications
The Mosaic Select is in keeping with the
open-ended, nature of the Atari itself. Many
additional applications come to mind:
1) Relocate the String-Array space to the banked
memory area. This could be useful for chained
Adventure programs or for Financial/ Budget
applications that do different things with the same
data. The String-Array data would be instantly
available to each program as soon as it was loaded
and run.
2) Different sets of data could be loaded into
each of the four banks, letting one program act like
four. Each set of data would be instantly available
with a single POKE.
3) The possibility exists that relatively short
Basic programs (less than 4K each) could be stored
in each bank, allowing four totally independent (and
one Master) programs to be in memory at once and
available with just a few POKEs.
4) Machine-language programming Utilities, DOS
Utilities, and/or Wedges could be stored in these
banks. These utility programs would be easily
accessed but would not be affected by LOADs, SAVEs,
or RUNs. Nor would they ever conflict with the Basic
program area or the Display List/ Display Memory.
Different utilities could be stored in each bank and
accessed when needed.
5) For Assembly-language programmers using the
Atari Assembler Editor, machine-language routines
could be written and assembled in the memory area
where they will reside a lot easier than writing
relocatable code.
6) The fact that each bank is selected by a
single POKE allows various forms of "Page Flipping."
The program in Listing 1 demonstrates how this can
be done. A separate display is placed into each bank
and then the banks are flipped using a short
machine-language Vertical Blank routine. This kind
of page flipping allows color blending and the
mixing of text and graphics.
Note that with 4K in each bank, Graphics 6 is the
highest resolution mode that can be used. A Graphics
7 Display Memory can fit into 4K, but not both the
Display List and the Display Memory.
Also note that if overlaying different graphics
modes, either the Display Lists must start at
exactly the same memory location, or the Display
Lists must be chained.
As with the Atari itself, the list of
applications goes on, limited only by the
programmer's ability and imagination.
The Future
The first practical applications will probably be
Programming Utilities and Wedges that can be
relocated to lower memory areas if Select has not
been installed. The 64K board will mean that more of
these utilities can be in memory and available to
the programmer at any one time with less
interference with the main program.
The second most practical application might be
for Player/ Missiles and Character Set data. By
simply writing to a location in this area and then
reading that same location, the existence of 64K can
be determined.
POKE 49152,3:IF PEEK(49152)=3 THEN
PMBAS=49152/256: etc.
Assembly-language programs can check against
RAMTOP. If RAMTOP is greater than 192, then 64K is
installed.
I am sure that the future will see commercial
programs written that will test for the existence of
64K RAM and will load in more data for bigger and
better programs if it is installed.
The Mosaic 64K RAM Select appears to be an
innovation whose time has come.
Listing 1.
5 REM "YOUR NAME IN LIGHTS" (C) 1982 by LeRoy J. Baxter
6 REM IF TOO MUCH FLICKER, ADJUST TV BRIGHTNESS AND CONTRAST
10 POKE 106,207:REM RAISE RAMTOP
20 BNKBAS=65472:BANK=0:BANKSELECT=2000
30 POKE BNKBAS+1,BANK:GRAPHICS 5+16
35 REM GET START ADDR OF GR.5 DISPLAY LIST
40 AL=PEEK(560):AH=PEEK(561):AD=AL+256*AH
50 POKE BNKBAS+2,BANK:GRAPHICS 5+16
60 POKE BNKBAS+3,BANK:GRAPHICS 2+16:B=PEEK(560)+256*PEEK(561)
70 POSITION 8,5:? #6;"your":POSITION 8,6:? #6;"name"
75 REM MOVE GR.2 DISPLAY LIST TO START AT SAME LOCATION AS GR.5 LIST
80 FOR X=0 TO 18:POKE AD+X,PEEK(B+X)
90 IF PEEK(B+X)=65 THEN POKE AD+X+1,AL:POKE AD+X+2,AH:X=18
100 NEXT X
110 POKE BNKBAS+0,BANK:GRAPHICS 5+16:POKE 710,154
115 REM NOW DRAW TO GR.5 SCREENS -- 1/3 OF DATA TO EACH BANK
120 FOR X=0 TO 15:READ A:POKE 1750+X,A:NEXT X
130 FOR X=0 TO 10:READ A:POKE 1710+X,A:NEXT X
140 FOR X=0 TO 2:POKE BNKBAS+X,X:COLOR X+1:PLOT X*2,19:DRAWTO X*2,28
150 PLOT 79-X*2,19:DRAWTO 79-X*2,28:NEXT X
160 FOR Z=0 TO 2:COLOR Z+1:BANK=Z
170 FOR X=39 TO Z STEP -1:GOSUB BANKSELECT:PLOT 39-X,18-Z:PLOT 40+X,18-Z:PLOT 39-X,29+Z:PLOT 40+X,29+Z:NEXT X
180 READ A:FOR X=1 TO A:GOSUB BANKSELECT:PLOT 39-Z,18-X-Z:PLOT 40+Z,18-X-Z:PLOT 39-Z,29+X+Z:PLOT 40+Z,29+X+Z:NEXT X
190 FOR X=1 TO 4:GOSUB BANKSELECT:PLOT 39-X-Z,18-A-Z:PLOT 40+X+Z,18-A-Z:PLOT 39-X-Z,29+A+Z:PLOT 40+X+Z,29+A+Z:NEXT X
200 READ A:FOR B=1 TO A:READ X,Y:GOSUB BANKSELECT
210 PLOT 39-X,18-Y:PLOT 40+X,18-Y:PLOT 39-X,29+Y:PLOT 40+X,29+Y:NEXT B
220 NEXT Z
230 FOR X=0 TO 2:POKE BNKBAS+X,X:POKE 49152,3:NEXT X:REM SHADOW REG. FOR BANK #
240 X=USR(1710):REM START BANK FLIPPING
250 FOR X=0 TO 2:POKE 1700,X:FOR T=1 TO 20:NEXT T:NEXT X:GOTO 250
280 REM PAGE FLIP ROUTINE
290 DATA 174,0,192,224,3,240,3,174,164,6,157,192,255,76,95,228
300 REM SET VBLANK ROUTINE
310 DATA 104,162,6,160,214,169,6,32,92,228,96
320 REM SCREEN DATA
340 DATA 10,24,5,11,6,11,7,12,8,12,9,13,10,14,10,15,9,16,8,17,7,17,6,17,5,17,4,17,3,16
350 DATA 2,16,1,15,1,14,2,13,3,13,4,13,5,14,6,14,6,15,5,15
360 DATA 6,37,6,8,7,8,8,9,9,9,10,10,11,11,12,12,13,13,14,14,15,15,16,15,17,16,18,16,19,17,20,17,21,17
370 DATA 22,16,23,16,24,15,25,14,25,13,24,12,23,12,22,11,21,11,20,10,19,10,18,10,17,11,16,12,17,13
380 DATA 18,14,19,14,20,15,21,14,20,13,20,14
390 DATA 2,54,7,5,8,5,9,5,10,5,11,6,12,6,13,6,14,6,15,6,16,7,17,7,18,7,19,7,20,8,21,8,22,8,23,8
400 DATA 24,9,25,9,26,9,27,9,28,9,29,10,30,10,31,10,32,10,33,9,34,9,35,8,36,8,37,7,37,6
410 DATA 36,5,35,5,34,5,33,4,32,4,31,4,30,4,29,4,28,5,27,5,26,5,25,6,26,7,27,7,28,7,29,7
420 DATA 30,8,31,8,32,7,32,6,31,6,31,7
2000 POKE BNKBAS+BANK,BANK:BANK=BANK+(BANK<3)-3*(BANK=2):RETURN
The Mosaic 64K Select Board series.
Unlike other RAM boards which acted as either 16k or
32k boards or RAMdisk boards that would act as a 16K
board and the remaining RAM as a RAMdisk. The
Mosiac Select series did bankswitching and brought
in more continuous RAM to the end user in 4k banks
at the top 52K range. This gave the user
52K but also gave them even more memory because up
to 3 boards totaling 192K count be connected
together to allow for 192K of usable memory.
If you have the manual for this
product, please contact Curt so that we can discuss
having it added on the page for others to download
and access.
CLICK HERE |
