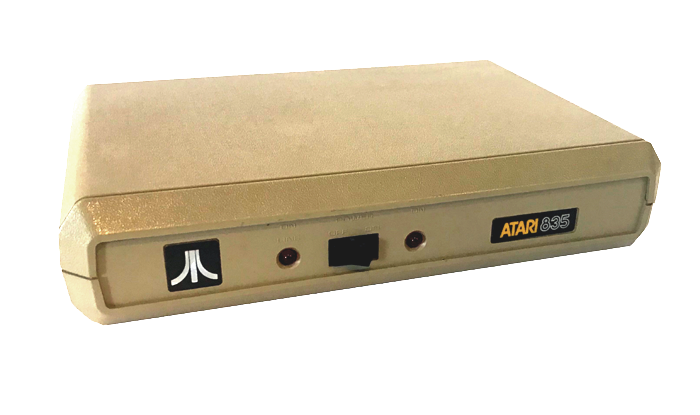

Atari 835 Direct Connect Modem





The Atari 835 Direct Connect Modem was Atari's second telephone communications device.  It was designed in partnership with Racal-VadicThe modem was a significant upgrade from the Atari 830 Acoustic coupler modem.  It did not require the Atari 850 interface, so for users just buying their first modem, this significantly lowered the cost of the product since didn't require the additional cost of purchasing the Atari 850.

The second upgrade was that is was a direct connect modem.  This meant that the modem could be connected directly to the home telephone line and then a regular telephone plugged in through it so that it didn't require additional phone outlets and wiring.

The fact that it was a direct connect modem meant that the user no longer needed to pick up the phone and manually dial the phone number of another computer system.  This could be done through the terminal program and its auto-dialer feature.

The Atari 835 came with a new terminal program called Telelink II which had a unique feature to it: It had onboard NVRAM that could store and save up to 2 frequently dialed telephone numbers in the cartridge and as long as the cartridge was used every couple of weeks or so, the charge on the memory would be kept and the numbers would continue to be saved for future use.

Atari and Chemical Bank would work together to create an on-line bank service cartridge for the Atari 835 modem to use on the Chemical Bank Pronto Electronic Banking service that Chemical Bank invested $20 million in creating.

Not too long afterwards Citibank would also offer, on Diskette, its Citibank Direct Access program to give users access its banking service through the Atari computers using the 835 and other modems that became available.

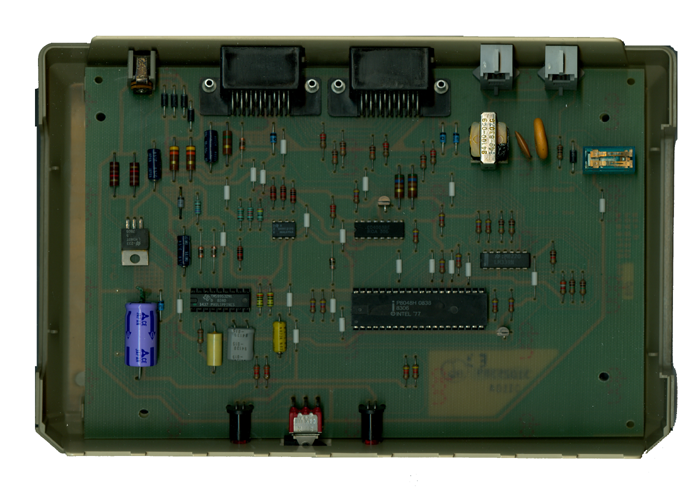

835 Modem - Inside Top

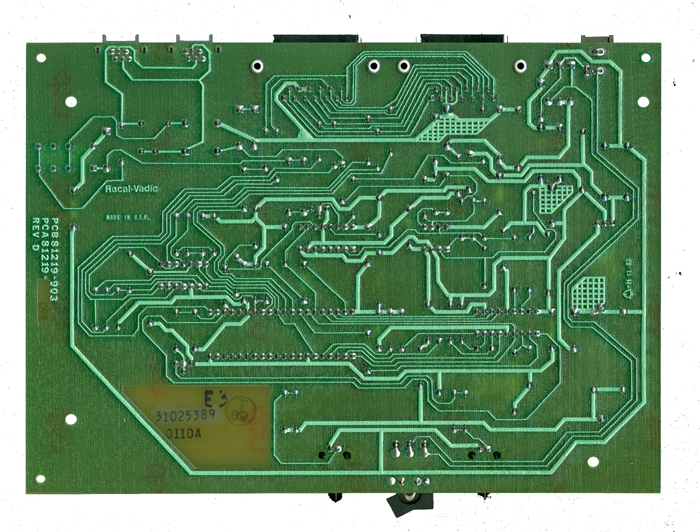

835 Modem - Inside Bottom



Work in Progress, updated 4/9/2019
